Super Easy, Solder-less Install
All Obsidian® Pro-Wired™ Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

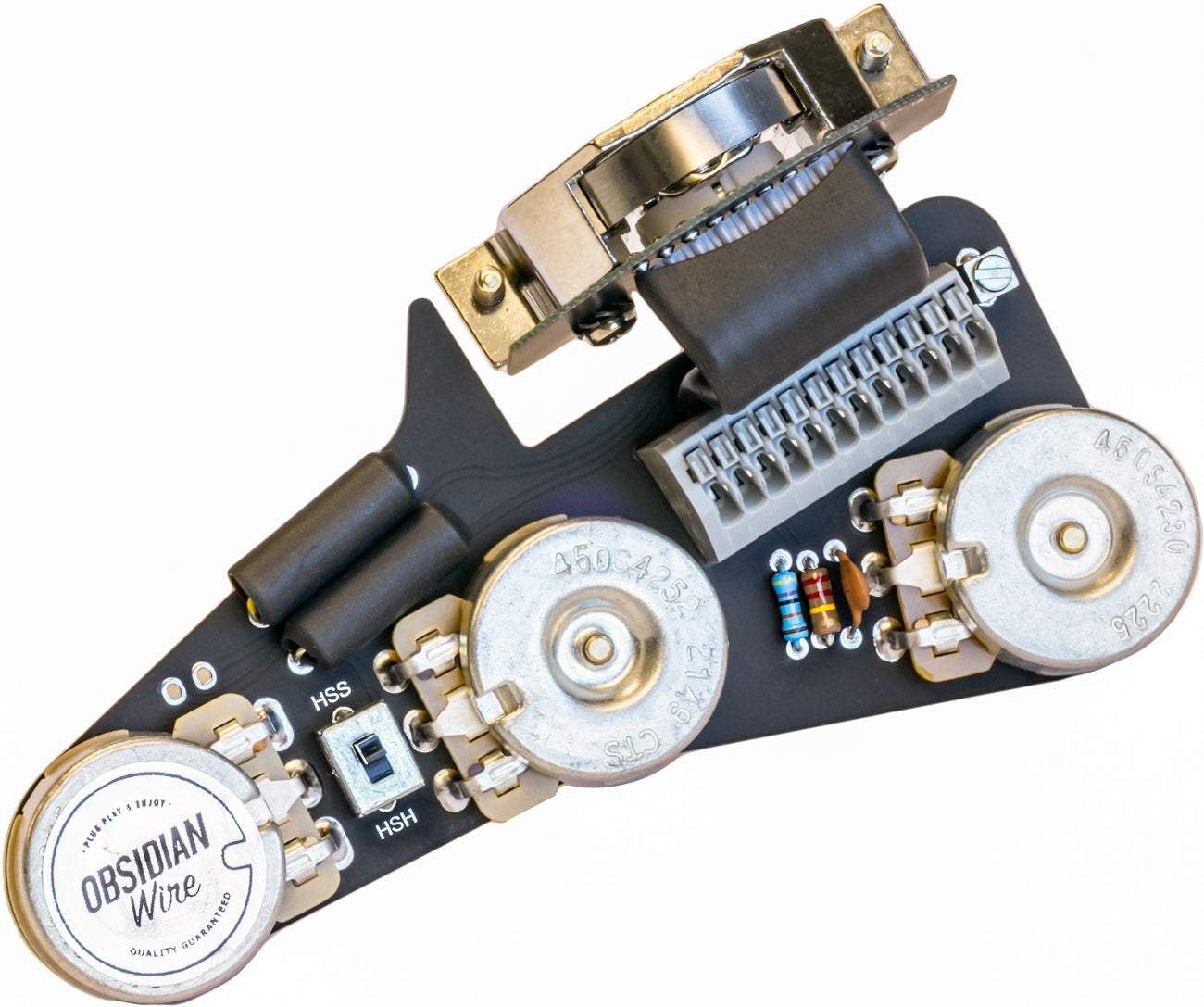

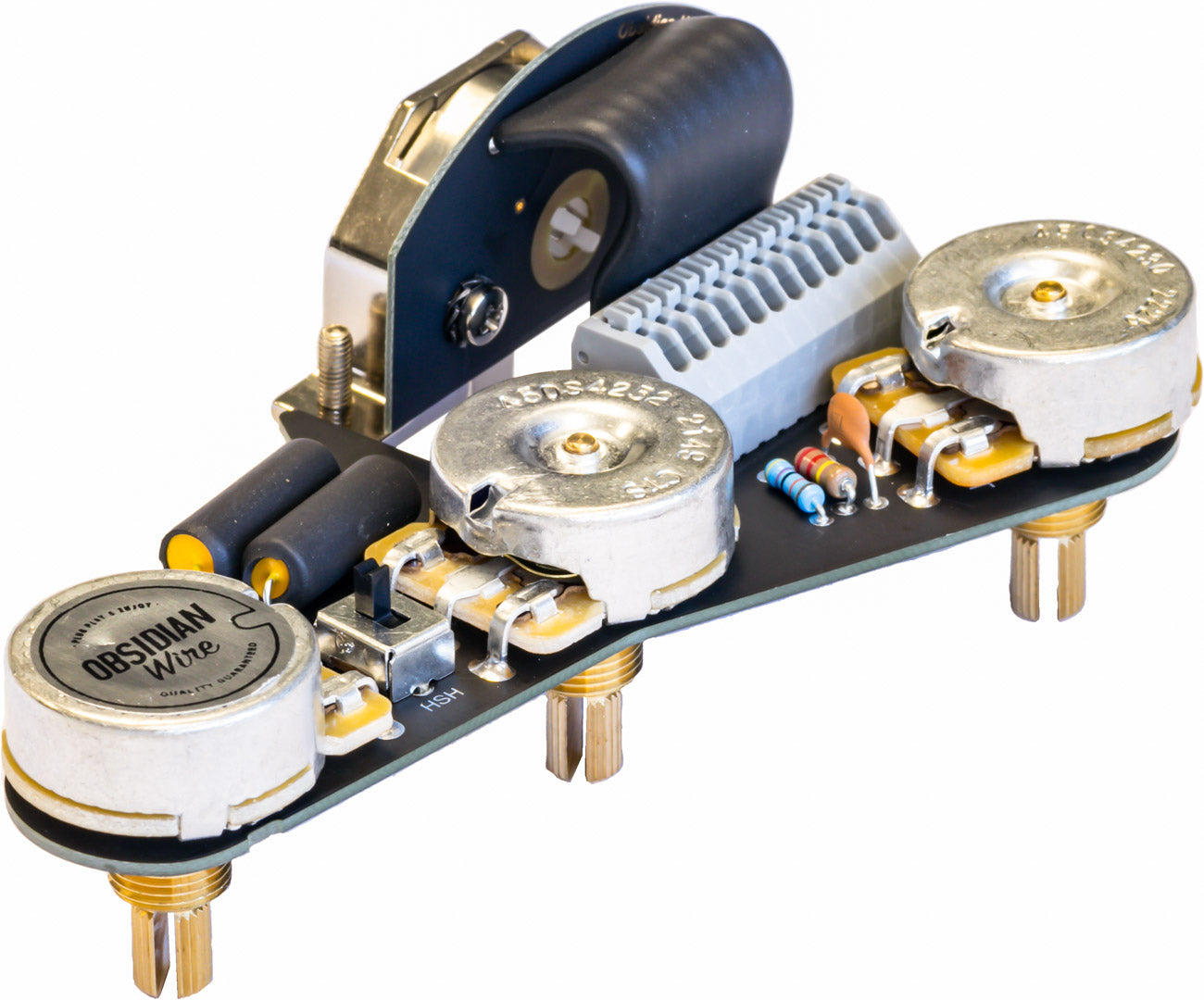

Premium HSS Strat Wiring Harness - Now for HSH Stratocaster® too
Our all new 'Gen2' HSS Strat wiring harness incorporates intelligent switching to give you the full clarity of your humbuckers AND tame your single coils, more useable tone and volume controls, greater clarity and an on board 'Mode' switch to allow you to switch between HSS & HSH modes. For ultimate versatility, we also offer you a 7-way switch upgrade option.
INTELLIGENT SWITCHING
Optimized for humbuckers & single coils. When building an HSH or HSS Stratocaster, there is a toss-up between choosing 500k controls to retain the life of a humbucker, or 250k controls to balance brighter single coils.
We use Obsidian® Intelligent Switching to give you the absolute best of both your humbuckers and single coils with a wiring harness that will automatically switch between the two.
AUTO SPLIT
A balanced humbucker & single coil combo. Achieving the right balance between your humbuckers and single coils is an important part of hearing the full dynamics of both pickups together. With Obsidian® auto split, your humbucker automatically splits into singlecoil mode when matched with your other singlecoils on the selector switch.
- Requires split coil compatible humbuckers
CRYSTAL CLEAR TONE (Treble Bleed)
Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

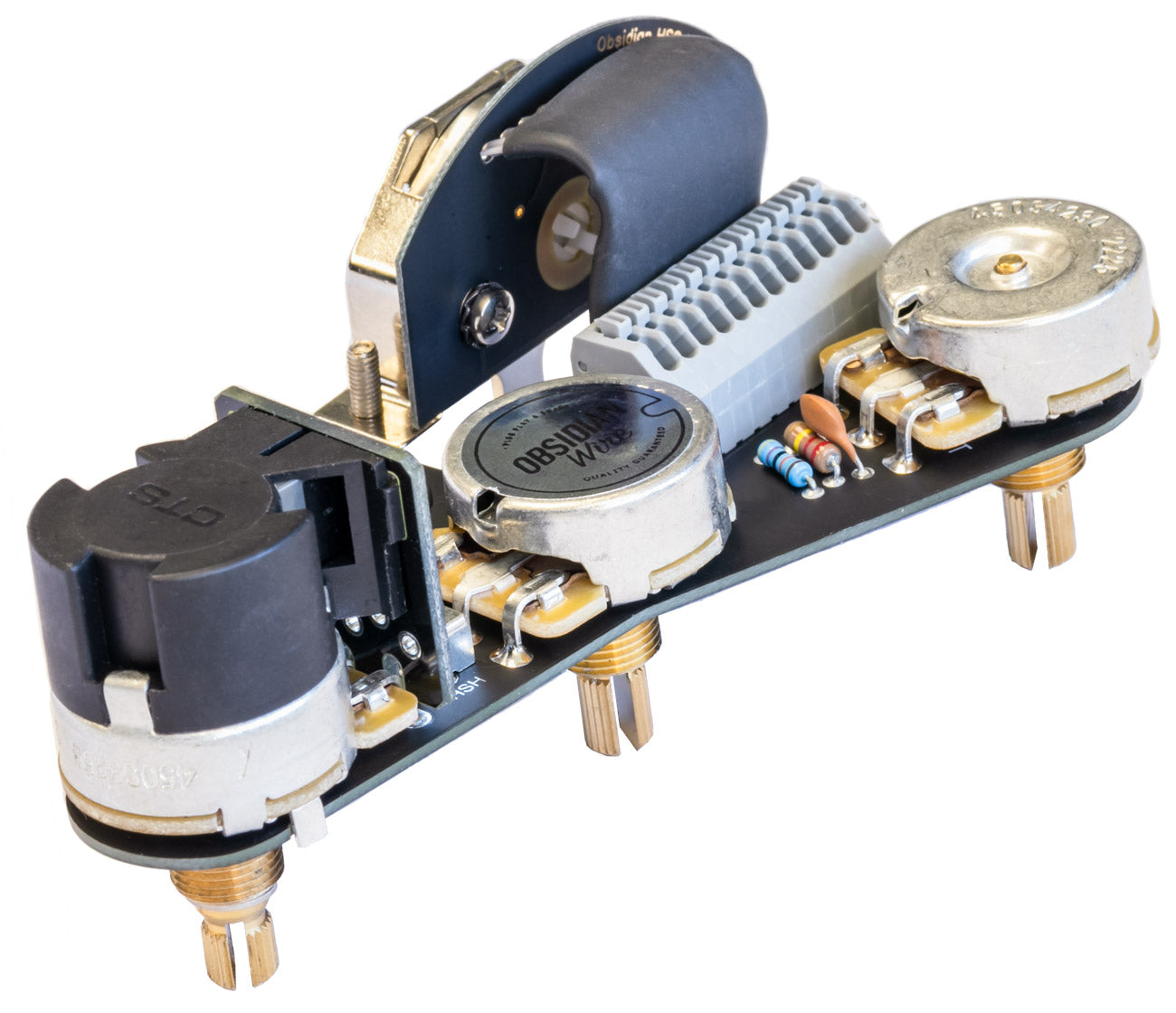

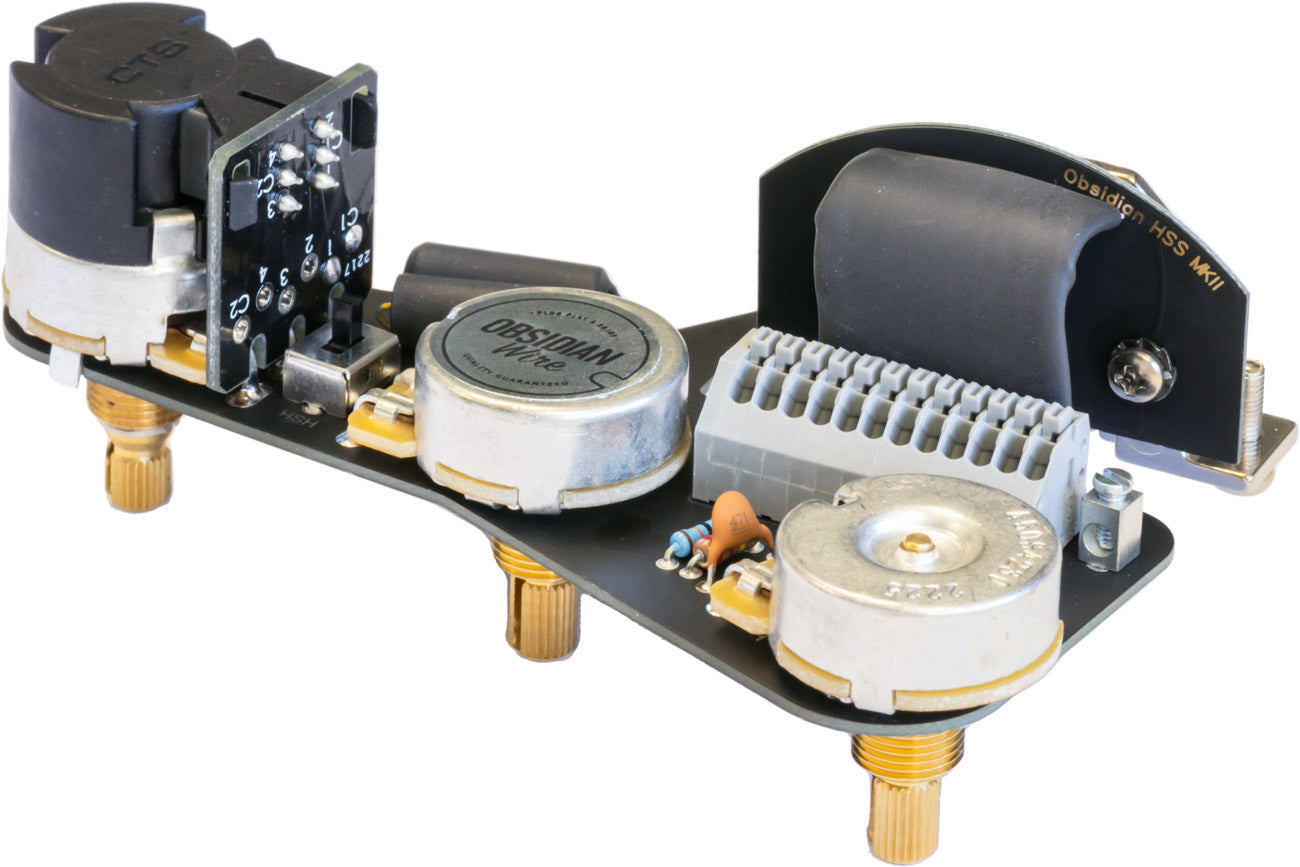

7-WAY SWITCH // GILMOUR MOD - UPGRADE OPTION
The sweetest bell like Strat® tone. The Obsidian® 7-Way Switch allows you to play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.
CONTROL LAYOUT - INCLUDES 'MODE' SWITCH

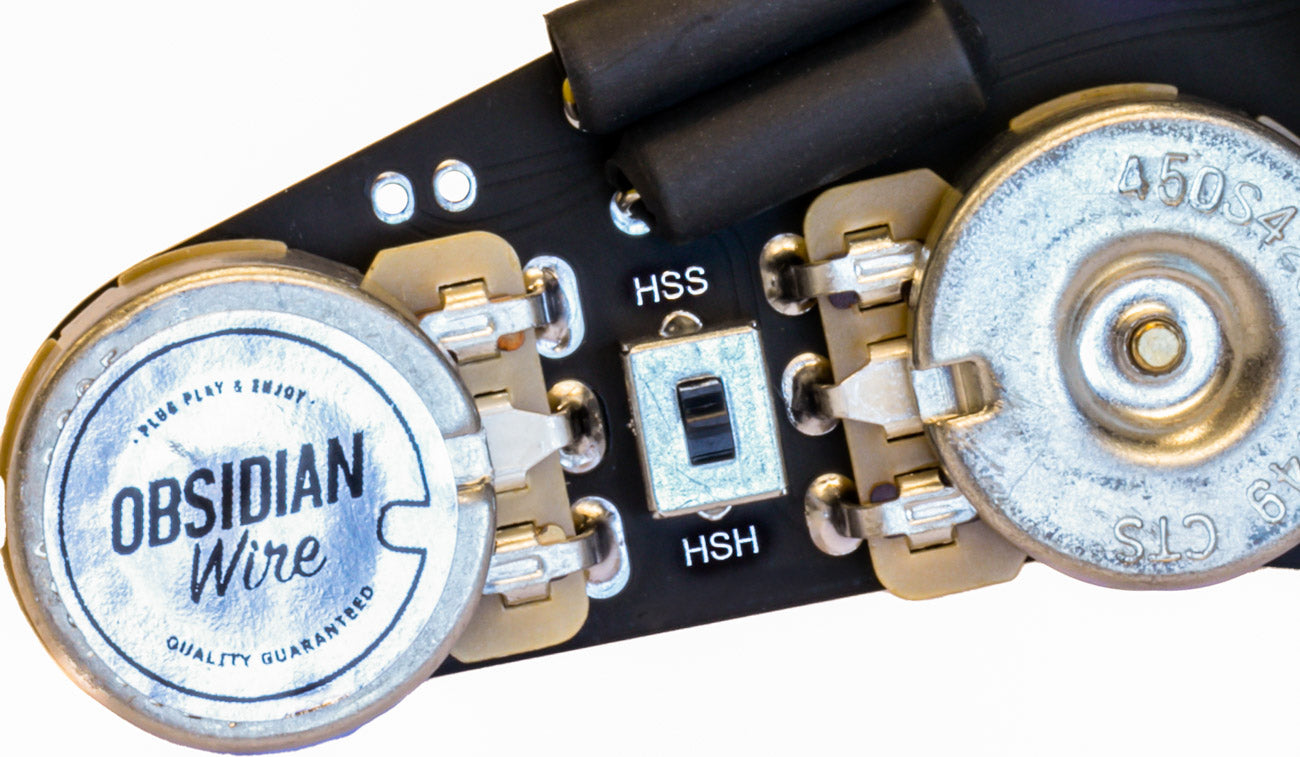

HSS Mode: For Humbucker Bridge Pickup + Two Single Coils
5: Neck (250k)
4: Middle + Neck (250k)
3: Middle (250k)
2: Bridge humbucker in split mode + middle (250k)
1: Bridge humbucker in full mode (500k)
* Diagram includes options Gilmour Mod // Neck pickup 'ON' switch
HSH Mode: For Humbucker Bridge & Neck Pickups + Middle Single Coil
5: Neck (500k)
4: Middle + Neck in split mode (250k)
3: Middle (250k)
2: Bridge in split mode + Middle (250k)
1: Bridge (500k)
* Diagram includes options Gilmour Mod // Neck pickup 'ON' switch
Tone Controls
Control 1: Master Volume (auto splits 250 for Single coils & 500k for Humbucker)
Control 2: Tone Control 1 (Neck & Middle) 250k No Load Pot & 0.022uf Capacitor
Control 3: Tone Control 2 (Bridge) 500k Pot & 0.022uf Capacitor
